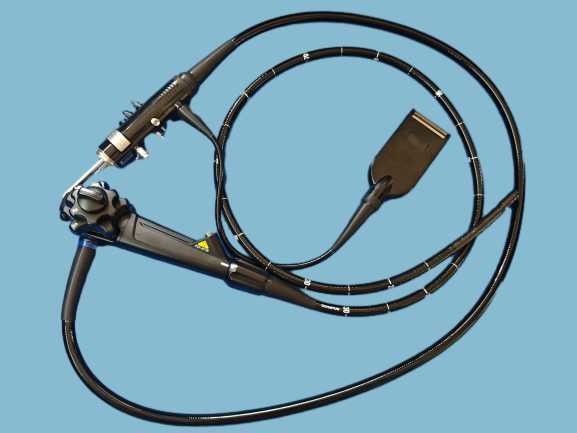

PCF-H170I High-Definition Video Colonoscope Designed For Routine Colonoscopy Procedures

PCF-H170I High-Definition Video Colonoscope Designed For Routine Colonoscopy Procedures

The Olympus PCF-H170I is a high-definition video colonoscope designed for routine colonoscopy procedures. It is part of the OPTERA series, known for its advanced imaging capabilities and ergonomic design.

Additional Features:

Variable Stiffness: Allows adjustment of the scope's stiffness to navigate challenging anatomical areas.

Water Jet: Facilitates cleaning of the mucosal surface during procedures.

Waterproof Connector: Eliminates the need for a water-resistant cap, reducing the risk of damage due to accidental immersion.

Clinical Benefits
HDTV Imaging: Provides clear and detailed images, enhancing diagnostic accuracy.

Narrow Band Imaging (NBI): Improves visualization of mucosal structures and vascular patterns.

Variable Stiffness: Assists in navigating the colon, reducing the risk of looping and improving patient comfort.

Water Jet Function: Aids in maintaining a clear view during procedures by removing mucus and debris.

Compatibility
The PCF-H170I is compatible with the Olympus EVIS EXERA III system, including the CV-170 video processor and CLV-170 light source, ensuring optimal performance and image quality.

Key Specifications

Optical System:

Field of View: 140°

Direction of View: Forward viewing

Depth of Field: 2–100 mm

Insertion Section:

Distal End Outer Diameter: 12.8 mm

Insertion Tube Outer Diameter: 12.8 mm

Working Length: 1,330 mm

Total Length: 1,655 mm

Instrument Channel:

Channel Inner Diameter: 3.7 mm

Minimum Visible Distance: 5.0 mm from the distal end

Bending Section:

Angulation Range:

Up: 180°

Down: 180°

Right: 160°

Left: 160°

HK FY-MED, advocating the concept of environmental protection and saving, aims to improve the quality of endoscopic products and the service life of the products, thus helping customers to save costs. In addition, we are committed to developing endoscopic equipment and accessories for a long time so as to meet the needs of our customers. We believe that our long time working in the field of endoscopy will enable us to take our service in the field of endoscopy to the next level.
