Medical Endoscope
>
|

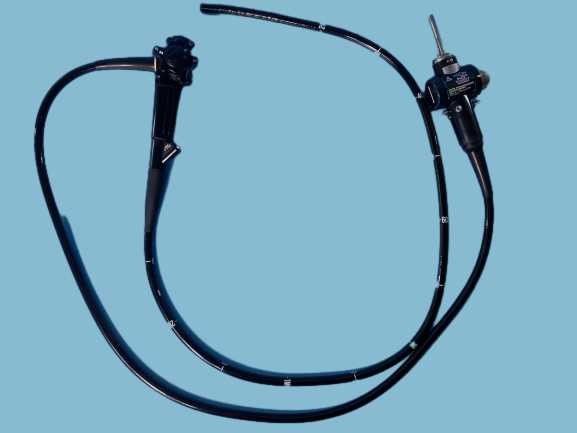

The CF-Q150 L/I colon video endoscope is designed for practical use, with an instrument channel diameter of 3.7 mm and an outer diameter of 12.8 mm for both the distal and insertion tubes.
Features:
The CCD provides high-quality images with excellent clarity and sharpness, which are necessary to form precise images of colonic mucosal relief and fine capillary structures.
The wide diameter of the instrument channel provides strong suction and is compatible with a wide range of endotherapy instruments.
The distal and insertion tubes are 12.8 mm in diameter.
The insertion tube can be bent in 4 directions (180° up/down, 160° right/left) for a complete examination of the colon.
The extra-wide 140° field of view allows easy visualization of large areas of the colonic mucosa.
Ergonomically designed operator's handle improves endoscope maneuverability. Conveniently positioned angle adjustment knob and user-programmable controls enhance performance.
Video colonoscopes - an essential piece of equipment for medical facilities and doctors' offices. Advanced medical equipment can expand the scope of hospital services to customers and improve the quality of medical care. These medical devices help to significantly improve the condition of patients and ensure the comfort of the doctor's work.
Parameters Of Olympus CF-Q150I Colonoscope
Working Length: 1330mm
Total length: 1655mm
Instrument Channel: 3.7mm
Field of View: 140 degrees
Depth of field: 3-100mm
Distal end outer diameter: 12.8mm
HK FY-MED, advocating the concept of environmental protection and saving, aims to improve the quality of endoscopic products and the service life of the products, thus helping customers to save costs. In addition, we are committed to developing endoscopic equipment and accessories for a long time so as to meet the needs of our customers. We believe that our long time working in the field of endoscopy will enable us to take our service in the field of endoscopy to the next level.
