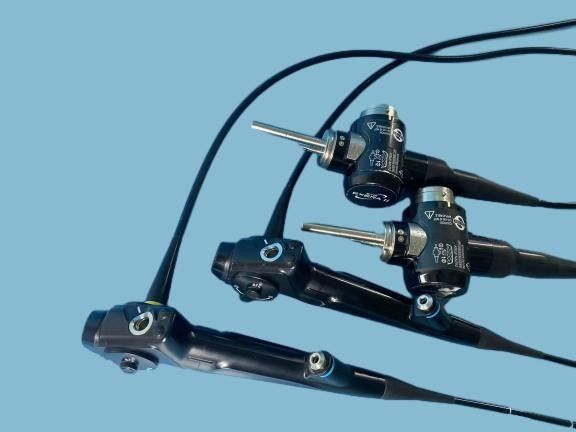

BF-P150 Bronchoscope Flexible Scope Flexible Bronchoscopy High Resolution Imaging Medical Devices

BF-P150 Bronchoscope Flexible Scope Flexible Bronchoscopy High Resolution Imaging Medical Devices

Slim 5.3 mm distal diameter and 5.4 mm insertion tube diameter facilitate smooth bronchial insertion. High-quality images provide a clear, sharp view of the inner tracheobronchial tree. Spacious 2.0 mm diameter instrument channel accommodates standard endobronchial accessories. Compatible with electrocautery and laser therapy. Fully compatible with the Olympus CV-150 video processor.

Parameters Of BF-P150 Bronchoscope

Angle of view: 120°
Direction of view: 0°
Depth of field: 3-100mm
Outer Diameter of the distal end: 5.3mm
Outer diameter of the insertion part: 5.4mm
Augulation range of the Bending section: up 180°, down 130°
Overall length(working): 870mm(600mm)
Instrumental channel:
Inner diameter2.0mm
Minimum visible distance: 3.0mm from distal end

Major Structure of Flexible Endoscope

Advancements in flexible endoscopy have rapidly progressed this technology to the next level of sophistication. Complex endoscopes and accessories have expanded the capabilities of performing surgery and treatments in a less invasive manner.
A flexible endoscope is like a Swiss Army knife that is brilliantly designed into a compact device that includes a suction channel, light and image guides, irrigation channels, and biopsy channels capable of passing instruments through.

Four Major Flexible Endoscope Structures

Control body
Insertion tube
Bending section/distal tip
Light guide connector
