2232 INSUFFLATOR Endoscopy Processor Medical Insufflator Control Video
  • 2232 INSUFFLATOR Endoscopy Processor Medical Insufflator Control Video
  • 2232 INSUFFLATOR Endoscopy Processor Medical Insufflator Control Video
  • 2232 INSUFFLATOR Endoscopy Processor Medical Insufflator Control Video
2232 INSUFFLATOR Endoscopy Processor Medical Insufflator Control Video

2232 INSUFFLATOR Endoscopy Processor Medical Insufflator Control Video

Model Number 2232
Product Details
Condition:
Good
Product Name:
Endoscopy Processor
Type:
Medical Equipment
Condition:
New/Used
Weight:
Varies
Material:
Plastic And Metal
Highlight:

endoscopy processor insufflator control

,

medical insufflator video endoscopy

,

endoscopy processor insufflator unit

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Packaging Details
standard packaging
Delivery Time
5-7 day
Payment Terms
T/T etc.
Product Description
2232 INSUFFLATOR Control Video External Device Gas Humidifier

WOLF-2232 INSUFFLATOR

Special properties

Gas warming

Overpressure control

Video connection

Gas humidifier, external device



Parameters Of WOLF-2232 INSUFFLATOR

  • Flow rate 30 l/min

  • Flow levels: continuous up to 30 l/min

  • Pressure: 3 – 25 mm Hg



HK FY-MED

HK FY-MED, advocating the concept of environmental protection and saving, aims to improve the quality of endoscopic products and the service life of the products, thus helping customers to save costs. In addition, we are committed to developing endoscopic equipment and accessories for a long time so as to meet the needs of our customers. We believe that our long time working in the field of endoscopy will enable us to take our service in the field of endoscopy to the next level.

The processor has a signal processing circuit that is provided with a digital signal processor. The digital processor generates a coarse video signal that is indirectly displayable on a video screen from image signals generated by a charge coupled device sensor .An auxiliary circuit has a correction circuit that generates another coarse video signal that is directly displayable on the video screen included for the following: (a) video endoscope (b) a camera for an endoscope.

2232 INSUFFLATOR Endoscopy Processor Medical Insufflator Control Video

Product Overview

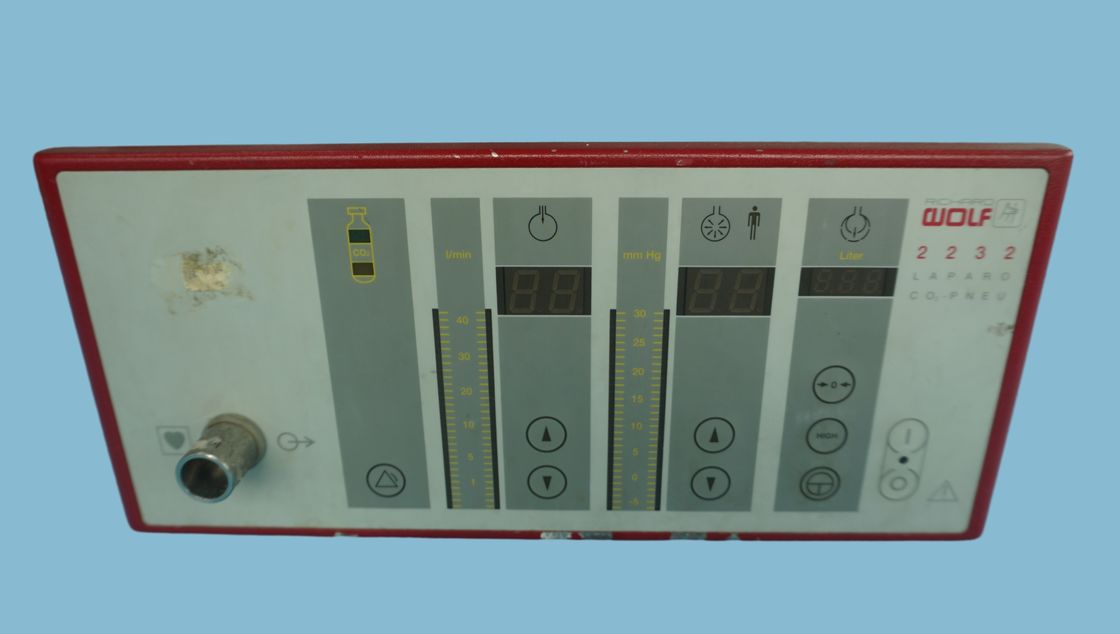

The Wolf 2232 is a laparoscopic CO2 insufflator with integrated gas warming, over-pressure control and a video connection for on-screen display of insufflation parameters. It delivers a continuous flow of up to 30 L/min over a working pressure range of 3-25 mmHg, and supports an external gas humidifier so that the gas entering the peritoneal cavity is both warmed and humidified. Showing flow, pressure and alarm status on the surgical monitor through the video output means the operating team sees the pneumoperitoneum data without turning to a separate device.

Typical Clinical Use
Laparoscopic general surgery where continuous, stable insufflation at low flow is preferred over high-flow delivery.
Gynaecological laparoscopy and diagnostic procedures requiring fine pressure control in the 3-25 mmHg range.
Long procedures where warmed and humidified gas reduces peritoneal cooling and lens fogging.
Technical Highlights
Continuous flow up to 30 L/min with pressure adjustable between 3 and 25 mmHg.
Integrated gas warming, with support for an external gas humidifier.
Over-pressure control and alarm limits to protect the patient during pressure spikes.
Video connection for displaying insufflation data on the surgical monitor.
Matched Wolf design for towers already built around Wolf optics and cameras.
Safe Use and Maintenance

Use medical-grade CO2 with a clean, dry regulator and confirm the cylinder pressure before each list. Inline hydrophobic filters should be replaced at the interval set by your facility protocol; a saturated filter restricts flow and can trigger false low-flow alarms. Check the over-pressure cut-off during the daily pre-use test, examine the tubing for kinks and cracks, and drain the water trap after use. Where a humidifier is fitted, follow its own cleaning cycle and use only sterile water.

Ordering Notes
Is the humidifier included?
The humidifier is an external device and is quoted separately. Tell us whether you need it and we will bundle it in the quotation.
Condition?
Condition is stated per unit. Each insufflator is powered on and checked for flow, pressure regulation and warming before dispatch.
Delivery and payment?
One piece minimum, dispatch normally within 5-7 working days, T/T accepted, freight quoted for your destination.
Product Specification Summary
ParameterValue
Model Number2232
Product NameEndoscopy Processor
WeightVaries
MaterialPlastic and Metal
TypeMedical Equipment
conditiongood
